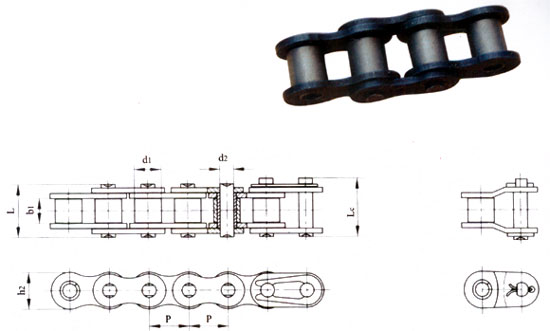

单排滚子链 套筒链
Single strand roller chains & Bushing chains
|
DIN ISO
链号
DIN ISO
Chain No. |
ANSI
链号
DIN ISO
Chain No. |
节距
Pitch |
滚子直径
Roller dimeter |
内节内宽
Width between
inner plates |
销轴直径
Pin diameter |
销轴长度
Pin length |
内链板高度
Inner plate depth |
极限拉伸载荷
Ultimate tensile strength |
每米长重Weight per meter |
|
P |
d1
max |
b1
mim |
d2
max |
L
max |
Lc
max |
h2
max |
Q
min |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kg/m |
|
08B-1 |
40 |
12.7 |
8.51 |
7.75 |
4.45 |
17 |
18.2 |
11.8 |
17.8 |
0.70 |
|
10A-1 |
50 |
15.875 |
10.16 |
9.40 |
5.08 |
20.7 |
22.2 |
15.09 |
21.8 |
1.01 |
|
12A-1 |
60 |
19.05 |
11.91 |
12.57 |
5.94 |
25.9 |
27.7 |
18.0 |
31.1 |
1.49 |
|
16A-1 |
80 |
25.4 |
15.88 |
15.75 |
7.92 |
32.7 |
35.0 |
24.0 |
55.6 |
2.60 |
|
20A-1 |
100 |
31.75 |
19.05 |
18.90 |
9.53 |
40.4 |
44.7 |
30.0 |
86.7 |
3.91 |
|
24A-1 |
120 |
38.1 |
22.23 |
25.22 |
11.10 |
50.3 |
54.3 |
35.7 |
124.6 |
5.70 |
|
28A-1 |
140 |
44.45 |
25.40 |
25.22 |
12.70 |
54.4 |
59.0 |
41.0 |
169 |
7.50 |
|
32A-1 |
160 |
50.8 |
28.58 |
31.55 |
14.27 |
64.8 |
69.6 |
47.8 |
222.4 |
9.85 |

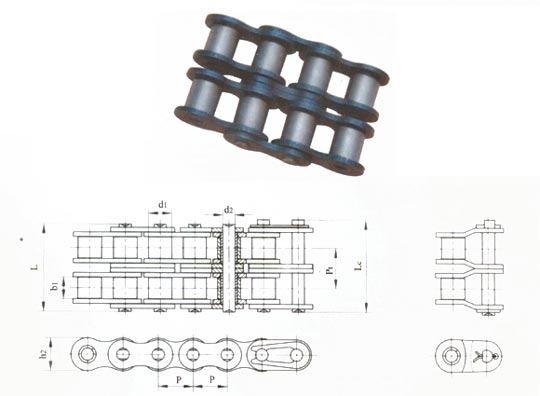

双排滚子链 套筒链
Double strand roller chains & Bushing chains
|
DIN ISO
链号
DIN ISO
Chain No. |
ANSI
链号
DIN ISO
Chain No. |
节距
Pitch |
滚子直径
Roller dimeter |
内节内宽
Width between
inner plates |
销轴直径
Pin diameter |
销轴长度
Pin length |
内链板高度
Inner plate depth |
排距
Transverse pitch |
极限拉伸载荷
Ultimate tensile strength |
每米长重Weight per meter |
|
P |
d1
max |
b1
mim |
d2
max |
L
max |
Lc
max |
h2
max |
Pt |
Q
min |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kg/m |
|
08B-2 |
40-2 |
12.7 |
8.51 |
7.75 |
4.45 |
31.2 |
33.7 |
11.8 |
13.92 |
31.1 |
1.35 |
|
10A-2 |
50-2 |
15.875 |
10.16 |
9.40 |
5.08 |
38.9 |
40.4 |
15.09 |
18.11 |
43.6 |
2.00 |
|
12A-2 |
60-2 |
19.05 |
11.91 |
12.57 |
5.94 |
48.8 |
50.5 |
18.0 |
22.78 |
62.3 |
2.92 |
|
16A-2 |
80-2 |
25.4 |
15.88 |
15.75 |
7.92 |
62.7 |
64.3 |
24.0 |
29.29 |
111.2 |
5.15 |
|
20A-2 |
100-2 |
31.75 |
19.05 |
18.90 |
9.53 |
76.4 |
80.5 |
30.0 |
35.76 |
173.5 |
7.80 |
|
24A-2 |
120-2 |
38.1 |
22.23 |
25.22 |
11.10 |
95.8 |
99.7 |
35.7 |
45.44 |
249.1 |
11.70 |
|
28A-2 |
140-2 |
44.45 |
25.40 |
25.22 |
12.70 |
103.3 |
107.9 |
41.0 |
48.87 |
338.1 |
15.14 |
|
32A-2 |
160-2 |
50.8 |
28.58 |
31.55 |
14.27 |
123.3 |
128.1 |
47.8 |
58.55 |
444.8 |
19.50 |

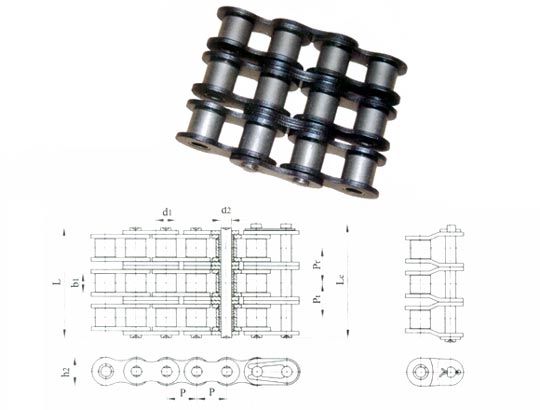

三排滚子链 套筒链
Triple strand roller chains & Bushing chains
|
DIN ISO
链号
DIN ISO
Chain No. |
ANSI
链号
DIN ISO
Chain No. |
节距
Pitch |
滚子直径
Roller dimeter |
内节内宽
Width between
inner plates |
销轴直径
Pin diameter |
销轴长度
Pin length |
内链板高度
Inner plate depth |
排距
Transverse pitch |
极限拉伸载荷
Ultimate tensile strength |
每米长重Weight per meter |
|
P |
d1
max |
b1
mim |
d2
max |
L
max |
Lc
max |
h2
max |
Pt |
Q
min |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kg/m |
|
08B-3 |
40-3 |
12.7 |
8.51 |
7.75 |
4.45 |
45 |
47 |
11.8 |
13.92 |
44.5 |
2.05 |
|
10A-3 |
50-3 |
15.875 |
10.16 |
9.40 |
5.08 |
57.0 |
58.5 |
15.09 |
18.11 |
65.4 |
3.00 |
|
12A-3 |
60-3 |
19.05 |
11.91 |
12.57 |
5.94 |
71.5 |
73.3 |
18.0 |
22.78 |
93.4 |
4.38 |
|
16A-3 |
80-3 |
25.4 |
15.88 |
15.75 |
7.92 |
91.7 |
93.6 |
24.0 |
29.29 |
166.8 |
7.72 |
|
20A-3 |
100-3 |
31.75 |
19.05 |
18.90 |
9.53 |
112.2 |
116.3 |
30.0 |
35.76 |
260.2 |
11.7 |
|
24A-3 |
120-3 |
38.1 |
22.23 |
25.22 |
11.10 |
141.4 |
145.2 |
35.7 |
45.44 |
373.7 |
17.53 |
|
28A-3 |
140-3 |
44.45 |
25.40 |
25.22 |
12.70 |
152.2 |
156.8 |
41.0 |
48.87 |
507.1 |
22.20 |
|
32A-3 |
160-3 |
50.8 |
28.58 |
31.55 |
14.27 |
181.8 |
186.6 |
47.8 |
58.55 |
667.2 |
29.25 | |
|
|
