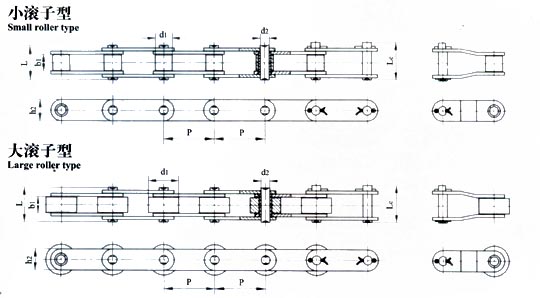

双节距输送链
Double pitch conveyor roller chains
|
DIN ISO
链号
DIN ISO
Chain No. |
ANSI
链号
DIN ISO
Chain No. |
节距
Pitch |
滚子直径
Roller dimeter |
内节内宽
Width between
inner plates |
销轴直径
Pin diameter |
销轴长度
Pin length |
内链板高度
Inner plate depth |
极限拉伸载荷
Ultimate tensile strength |
每米长重Weight per meter |
|
P |
d1
max |
b1
mim |
d2
max |
L
max |
Lc
max |
h2
max |
Q
min |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kN |
kg/m |
|
C208B
C208BL |
C2040
C2042 |
25.4 |
8.51
15.88 |
7.75 |
4.45 |
16.7 |
18.2 |
11.8 |
17.8 |
0.55
0.89 |
|
C210A
C210AL |
C2050
C2052 |
31.75 |
|
9.40 |
5.08 |
20.7 |
23.3 |
15.0 |
21.8 |
0.78
1.27 |
|
C212A
C212AL |
C2060
C2062 |
38.1 |
|
12.57 |
5.94 |
25.9 |
28.3 |
18.0 |
31.1 |
|
|
C212AH
C212AHL |
C2060H
C2062H |
38.1 |
|
12.57 |
5.94 |
29.2 |
31.6 |
18.0 |
31.1 |
1.44
2.07 |
|
C216A
C216AL |
C2080
C2082 |
50.8 |
|
15.75 |
7.92 |
32.7 |
36.5 |
24.0 |
55.6 |
2.08
3.12 |
|
C216AH
C216AHL |
C2080H
C2082H |
50.8 |
|
15.75 |
7.92 |
36.2 |
39.4 |
24.0 |
55.6 |
2.54
3.58 |
|
C220A
C220AL |
C2100
C2102 |
63.5 |
19.05
39.67 |
18.90 |
9.53 |
40.4 |
44.7 |
30.0 |
86.7 |
3.01
4.83 |
|
C220AH
C220AHL |
C2100H
C2102H |
63.5 |
19.05
39.67 |
18.90 |
9.53 |
43.6 |
46.9 |
30.0 |
86.7 |
3.56
5.38 |
|
C224A
C224AL |
C2120
C2122 |
76.2 |
22.23
44.45 |
25.22 |
11.1 |
50.3 |
54.3 |
36.0 |
124.6 |
4.66
7.66 |
|
C224AH
C224AHL |
C2120H
C2122H |
76.2 |
22.23
44.45 |
25.22 |
11.1 |
53.5 |
57.5 |
36.0 |
124.6 |
5.26
8.26 | |
|
|
