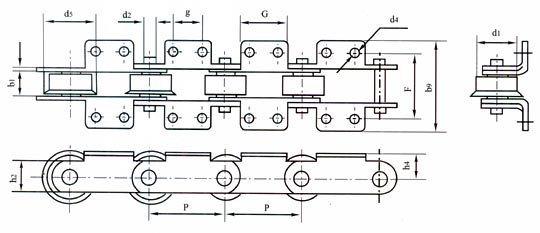

长节距输送链
Length pitch conveyor roller chains
|
链号
Chain No. |
节距
Pitch |
滚子直径
Roller dimeter |
内节内宽
Width between
inner plates |
销轴直径
Pin diameter |
链板厚度
Plate thickness |
内链板高度
Inner plate depth |
附件尺寸
Attachments dimension |
极限拉伸载荷
Ultimate tensile strength |
|
P |
d1
max |
b1
mim |
d2
max |
T
max
|
h2
max |
|
Q
min |
|
mm |
mm |
mm |
mm |
mm
|
mm |
F |
b9 |
G |
g |
h4 |
d4 |
d5 |
|
| P60A |
60 |
28.58 |
27.0 |
11.10 |
4.0 |
36.0 |
|
|
|
|
|
|
44.0 |
124.6 |
| P75A |
75 |
32 |
15.75 |
7.92 |
3.2 |
22.0 |
52.0 |
74.0 |
55.0 |
30.0 |
22.0 |
10.0 |
|
55.6 |
| P75AH |
75 |
45.0 |
18.9 |
9.52 |
4.8 |
30.0 |
|
|
|
|
|
|
|
86.7 |
| P80A |
80 |
30.0 |
29.5 |
15.0 |
6.0 |
40.0 |
|
|
|
|
|
|
|
225.0 |
| P80A |
80 |
30.0 |
31.5 |
15.0 |
5.0 |
55.0 |
|
|
|
|
|
|
|
225.0 |
| P83.2A |
83.2 |
25.0 |
15.75 |
11.10 |
4.0 |
29.5 |
163.0 |
176.0 |
76.5 |
58.0 |
18.0 |
5.5 |
|
124.6 |
| P100AL |
100 |
38.0 |
18.90 |
9.52 |
4.0 |
25.0 |
66.0 |
95.0 |
70.0 |
40.0 |
20.0 |
9.0 |
|
86.7 |
| P100AL |
100 |
40.0 |
22.0 |
11.10 |
4.0 |
32.0 |
70.0 |
110.0 |
65.0 |
40.0 |
23.0 |
9.5 |
48.0 |
124.6 |
| P100AL |
100 |
48.0 |
31.55 |
14.27 |
5.0 |
40.0 |
112.0 |
140.0 |
80.0 |
49.5 |
30.0 |
10.5 |
|
222.0 |
| P108A |
108 |
35.0 |
18.9 |
9.52 |
4.0 |
26.0 |
64.0 |
88.0 |
68.0 |
40.0 |
15.0 |
9.0 |
|
86.7 |
| P110AL |
110 |
40.0 |
27.0 |
11.10 |
5.0 |
30.0 |
|
|
|
|
|
|
58.0 |
124.6 |
| P125AL |
125 |
70.0 |
45.0 |
24.0 |
10.0 |
60.0 |
|
|
|
|
|
|
|
450.0 |
| P150AL |
150 |
50.0 |
22.0 |
11.1 |
4.8 |
32.0 |
70.0 |
104.0 |
85.0 |
60.0 |
22.0 |
10.0 |
|
124.6 |
| P200AL |
200 |
85.0 |
42.0 |
22.0 |
8.0 |
60.0 |
190.0 |
242.0 |
110.0 |
70.0 |
180.0 |
18.0 |
|
350.0 |
|
P250AL |
250 |
80.0 |
37.0 |
15.0 |
6.0 |
42.0 |
|
|
|
|
|
|
90.0 |
225.0 | |
|
|
