板式链
Leaf chains
|
|
节距
Pitch |

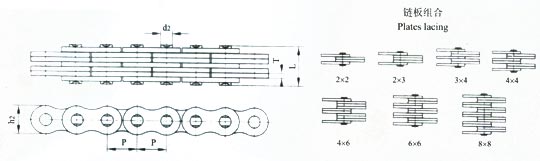

链板组合
Chain lacing |
|
|
销轴直径Pin diameter |
销轴长度
Pin length |
极限拉伸载荷
Ultimate tensile strength |
每米长重Weight per meter |
|
P |
|
h2
max |
T
max |
d2
max |
L
max |
Q
min |
q |
|
mm |
|
mm |
mm |
mm |
mm |
kN |
kg/m |
|
LH0822 |
12.7 |
2×2 |
12.07 |
2.08 |
5.09
|
11.05 |
22.2 |
0.64 |
|
LH0823 |
2×3 |
13.16 |
22.2 |
0.8 |
|
LH0834 |
3×4 |
17.4 |
33.4 |
1.12 |
|
LH0844 |
4×4 |
19.51 |
44.5 |
1.28 |
|
LH0846 |
4×6 |
23.75 |
44.5 |
1.6 |
|
LH0866 |
6×6 |
27.99 |
66.7 |
1.92 |
|
LH0888 |
8×8 |
36.45 |
89.0 |
2.56 |
|
LH1022 |
15.875 |
2×2 |
15.09
|
2.44
|
5.96 |
12.9 |
33.4 |
0.88 |
|
LH1023 |
2×3 |
15.37 |
33.4 |
1.1 |
|
LH1034 |
3×4 |
20.32 |
48.9 |
1.5 |
|
LH1044 |
4×4 |
22.78 |
66.7 |
1.8 |
|
LH1046 |
4×6 |
27.74 |
66.7 |
2.2 |
|
LH1066 |
6×6 |
32.69 |
100.1 |
2.65 |
|
LH1088 |
8×8 |
42.57 |
133.4 |
3.5 |
|
LH1222 |
19.05 |
2×2 |
18.11
|
3.3 |
7.94
|
17.37 |
48.9 |
1.45 |
|
LH1223 |
2×3 |
20.73 |
48.9 |
1.8 |
|
LH1234 |
3×4 |
27.43 |
75.6 |
2.5 |
|
LH1244 |
4×4 |
30.78 |
97.9 |
2.9 |
|
LH1246 |
4×6 |
37.49 |
97.9 |
3.6 |
|
LH1266 |
6×6 |
44.2 |
146.8 |
4.3 |
|
LH1288 |
8×8 |
57.61 |
195.7 |
5.8 |
|
LH1622 |
25.4 |
2×2 |
24.13
|
4.09 |
9.54 |
21.34 |
84.5 |
2.2 |
|
LH1623 |
2×3 |
25.48 |
84.5 |
2.7 |
|
LH1634 |
3×4 |
33.76 |
129.0 |
3.8 |
|
LH1644 |
4×4 |
37.90 |
169.0 |
4.3 |
|
LH1646 |
4×6 |
46.18 |
169.0 |
5.4 |
|
LH1666 |
6×6 |
54.46 |
253.6 |
6.5 |
|
LH1688 |
8×8 |
71.02 |
338.1 |
8.6 |
|
LH2022 |
31.75 |
2×2 |
30.18 |
4.9
|
11.11 |
25.37 |
115.6 |
3.4 |
|
LH2023 |
2×3 |
30.33 |
115.6 |
4.3 |
|
LH2034 |
3×4 |
40.23 |
182.4 |
6.0 |
|
LH2044 |
4×4 |
45.19 |
231.3 |
6.9 |
|
LH2046 |
4×6 |
55.09 |
231.3 |
8.6 |
|
LH2066 |
6×6 |
65.00 |
347.0 |
10.3 |
|
LH2088 |
8×8 |
84.81 |
462.6 |
13.8 | |
|
|
节距
Pitch |
链板组合
Chain lacing |
|
|
销轴直径Pin diameter |
销轴长度
Pin length |
极限拉伸载荷
Ultimate tensile strength |
每米长重Weight per meter |
|
P |
|
h2
max |
T
max |
d2
max |
L
max |
Q
min |
q |
|
mm |
|
mm |
mm |
mm |
mm |
kN |
kg/m |
|
LH2422 |
38.1 |
2×2 |
36.2 |
5.77 |
12.71
|
29.62 |
151.2 |
4.6 |
|
LH2423 |
2×3 |
35.43 |
151.2 |
5.8 |
|
LH2434 |
3×4 |
47.07 |
244.6 |
8.1 |
|
LH2444 |
4×4 |
52.88 |
302.5 |
9.3 |
|
LH2446 |
4×6 |
64.52 |
302.5 |
11.6 |
|
LH2466 |
6×6 |
76.15 |
453.7 |
13.9 |
|
LH2488 |
8×8 |
99.42 |
605.0 |
18.6 |
|
LH2822 |
44.45 |
2×2 |
42.24
|
6.55
|
14.29 |
33.55 |
191.3 |
6.1 |
|
LH2823 |
2×3 |
40.16 |
191.3 |
7.6 |
|
LH2834 |
3×4 |
53.37 |
315.8 |
10.6 |
|
LH2844 |
4×4 |
59.97 |
382.6 |
12.2 |
|
LH2846 |
4×6 |
73.18 |
382.6 |
15.2 |
|
LH2866 |
6×6 |
86.39 |
578.3 |
18.2 |
|
LH2888 |
8×8 |
112.8 |
765.1 |
24.3 |
|
LH3222 |
50.8 |
2×2 |
48.26 |
7.52 |
17.46
|
39.01 |
289.1 |
8.0 |
|
LH3223 |
2×3 |
46.58 |
289.1 |
10.0 |
|
LH3234 |
3×4 |
61.72 |
440.4 |
14.0 |
|
LH3244 |
4×4 |
69.29 |
578.3 |
16.0 |
|
LH3246 |
4×6 |
84.43 |
578.3 |
20.0 |
|
LH3266 |
6×6 |
99.57 |
857.4 |
24.0 |
|
LH3288 |
8×8 |
129.84 |
1156.5 |
32.0 |
|
LH4022 |
63.5 |
2×2 |
60.33
|
9.91 |
23.81 |
51.74 |
433.7 |
15.8 |
|
LH4023 |
2×3 |
61.70 |
433.7 |
19.8 |
|
LH4034 |
3×4 |
81.61 |
649.4 |
27.7 |
|
LH4044 |
4×4 |
91.57 |
867.4 |
31.6 |
|
LH4046 |
4×6 |
111.48 |
867.4 |
39.5 |
|
LH4066 |
6×6 |
131.39 |
1301.1 |
47.4 |
|
LH4088 |
8×8 |
171.22 |
1734.8 |
63.2 | |
|
|
|
